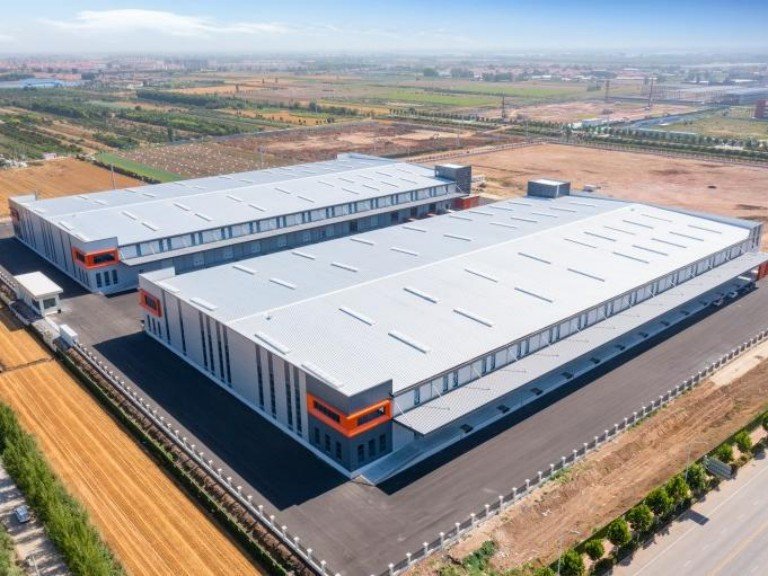

43,700 Sqm Of CNC Machining Center Workshop In Mexico
Services provided: Workshop, custom buildings
Project Details
- Project Name:43,700 Sqm Of CNC Machining Center Workshop In Mexico
- Project address: Mexico
- Project area: 43,700 Sqm
- Manufacturer: Xinguangzheng
Project Description
Faced with the need for a state-of-the-art CNC machining facility, a leading manufacturer in Mexico turned to Qingdao Xinguangzheng Steel Structure Co., Ltd. for an efficient and innovative solution. The project required a 43,700 sqm facility with a large-span, column-free design, advanced safety features, and compliance with Mexico’s strict building codes. Leveraging a lightweight portal frame system and rapid construction techniques, Qingdao Xinguangzheng delivered the facility within six months. The result? A 35% increase in production capacity, reduced operational costs, and enhanced safety for workers and equipment.
The Problem
Our client faced several significant challenges in developing their new workshop, including:
Space Efficiency: The facility required a large-span, column-free design to allow for the flexible arrangement of CNC machines, overhead cranes, and material handling systems.
Safety Standards: Advanced ventilation, noise control, and fire safety systems were crucial to ensuring a safe and productive working environment.
Building Code Compliance: The facility had to meet Mexico’s seismic standards and environmental regulations, given the region’s susceptibility to earthquakes.
Tight Timeline: Rapid construction was essential to meet the client’s production demands without compromising on quality.
Cost-Efficiency: A cost-effective solution was a priority, balancing advanced features with a manageable budget.
The Solution
Large-Span Steel Structure: Using a lightweight portal frame system, we designed a workshop with spans of up to 45 meters, eliminating internal columns and maximizing usable space.
Thermal and Noise Optimization: High-strength galvanized steel panels with 120mm insulation provided thermal efficiency and noise reduction, ensuring an optimal environment for precision machining.
Seismic Resilience: The structure was engineered with high-strength Q355 steel and reinforced connections to exceed Mexico’s seismic safety standards.
Fire Safety Systems: Automatic sprinklers, smoke detectors, and fire-resistant coatings were fully integrated, meeting stringent safety regulations.
High-Load Flooring: Reinforced concrete flooring with a load capacity of 8 tons per sqm supported heavy machinery and ensured long-term durability.
Optimized Logistics: Ten loading bays were incorporated, streamlining material handling and transport processes.
Prefabrication: Steel components were manufactured in our advanced facilities, ensuring precision while reducing on-site construction time.
Rapid Assembly: Our modular assembly techniques enabled us to complete the 43,700 sqm facility in just six months.
Sustainability: Eco-friendly materials and methods aligned with Mexico’s green building initiatives, minimizing environmental impact.
Result
Our solution delivered measurable benefits, setting benchmarks for CNC machining workshop efficiency.
35% Increase in Production Capacity: The column-free design enabled flexible CNC machine layouts and streamlined workflows.
Enhanced Safety and Comfort: Advanced ventilation, noise control, and fire safety systems ensured an optimal working environment for both employees and equipment.
Reduced Operational Costs: Energy-efficient insulation and low-maintenance steel structures contributed to significant cost savings.
Improved Logistics: Optimized loading bays and high-load flooring enhanced material handling and equipment performance.
On-Time Delivery: The facility was completed on schedule and within budget, showcasing Qingdao Xinguangzheng’s commitment to efficiency and quality.
